Warm Mix Modified Asphalt
(ECO-PLUS)
(ECO-PLUS)
A technology for lowering the temperature of the modified asphalt mixture is required to construct a modified asphalt pavement with excellent performance and constant quality, and this product uses the warm mix asphalt technology as an alternative.
AP
170℃
Production/Compaction Temperatures Determined Based on Low Viscosity Properties
Production Temperature: 140℃~145℃, Compaction Temperature: 125℃~135℃

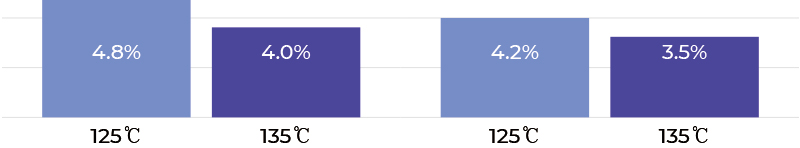

| Porosity (%) |  |
|---|---|

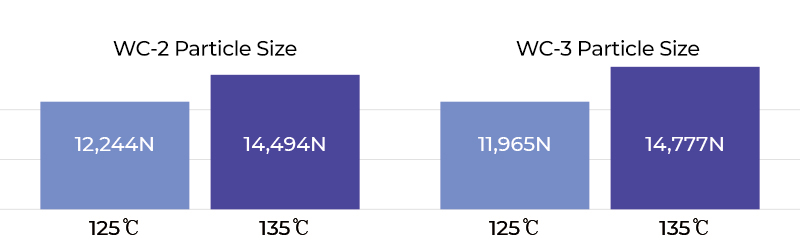

| Stability (N) |  |
Satisfies MOLIT’s quality standards for the medium-temperature asphalt mixtures
Additive
-
Warm-mix Asphalt AdditiveEasy Temperature Management
-
Anti-stripping AgentImproved Moisture Resistance
-
Additive for Improved Low-temp. PerformanceImproved Low-temp. Performance
-
SBS PolymerImproved Plastic Deformation and Crack Resistance
Working Temperature 30℃ ↓
〉〉
〉〉
ECO
PLUS
PLUS
140℃
Viscosity property lower than the existing modified asphalt secured

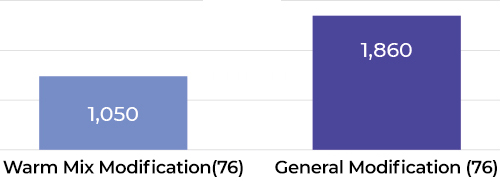

| Kinematic Viscosity (Cp) |  |
|---|
Performance Evaluation
Flow-resistant asphalt pavement can be provided by securing moisture resistance and plastic deformation resistance.

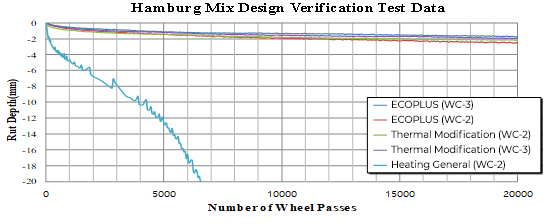

| Hamburg Wheel Tracking test results |
|---|
 |
The occurrence of potholes is expected to decrease by securing an excellent adhesion with aggregates.
| Results of Dynamic Immersion Test | |
|---|---|
 |
 |
| Thermal general asphalt mixture | ECO-PLUS Medium-temperature Modified Asphalt Mixture |
Performance Grade Test
| Item | Unit | Warm Mix Modified Asphalt |
|---|---|---|
| Penetration | 1/10mm | 48 |
| Softening Point | ℃ | 61.9 |
| Flash Point | ℃ | 328 |
| Signal | cm | 40 |
| Kinematic Viscosity | CP | 1,050 |
| Performance Grade | PG | 76-22 |
Improvements resulting from the use of medium-temperature modified asphalt (ECO-PLUS)
- Additives and inhibitors added to warm mix asphalt
-
SBS Polymer AdditiveAsphalt high temperature grade and retention of elasticityAnti-stripping agentImprovement of moisture resistanceAdditive for improved low-temp. performanceImprovement of low-temp. propertiesMesophilic additiveMesophilic effect
- Improved resistance to plastic deformation at high temperatures
- Improved resistance to moisture including rain
- Improved resistance of asphalt pavement to deformation and cracking
- High-durability road pavement material
- The life of asphalt increased due to the effectiveness in reducing road pavement damage caused by climate change and traffic load changes.
- Low mixing and installation temperatures remove fumes and odors from oil vapor of asphalt and reduce fuel consumption.
- Eco-friendly with relatively low emission of pollutants such as carbon dioxide, sulfur and nitrogen oxides
